Factory Directly Supply Customized Gold Plated Molybdenum Wire China

Factory Directly Supply Customized Gold Plated Molybdenum Wire China

customized gold plated molybdenum wire

factory direct gold plated wire

china gold plated molybdenum wire

Nguồn gốc:

Trung Quốc

Hàng hiệu:

WINNER

Chứng nhận:

ISO9100

Số mô hình:

MW001

Liên hệ với chúng tôi
Yêu cầu Đặt giá
Chi tiết sản phẩm
Ứng dụng:
Bao bì bán dẫn, vi điện tử, thiết bị y tế
Bưu kiện:
Đoạn đệm
Chống ăn mòn:
Cao
Vật liệu:
đồng
Đường kính dây:
0,001 inch
Sức mạnh trái phiếu:
Cao
Chiều dài mét:
500/1000
Loại sản phẩm:
Dây liên kết
Độ dày lớp phủ:
0,001mm
Lớp phủ:
Vàng
độ tinh khiết:
99,999%
Phương pháp liên kết:
siêu âm
Phạm vi nhiệt độ:
-40 ° C đến 200 ° C.
Bề mặt hoàn thiện:
sáng
Độ dẫn điện:
98%
Kích thước gói hàng:
100 mét
Làm nổi bật:

customized gold plated molybdenum wire

,

factory direct gold plated wire

,

china gold plated molybdenum wire

Điều khoản thanh toán và vận chuyển
Số lượng đặt hàng tối thiểu
1 cái
Giá bán
999
chi tiết đóng gói
Cuộn, đóng gói trung tính hoặc với logo OEM
Thời gian giao hàng
5-8 ngày làm việc
Điều khoản thanh toán
L/C, Công Đoàn Phương Tây, T/T
Khả năng cung cấp
100000 cuộn mỗi tháng
Mô tả sản phẩm

Gold plated molybdenum wire offers a few advantages versus gold plated tungsten wire. Gold plated molybdenum wire is lighter than tungsten and more ductile. The ductility of molybdenum wire allows it to be woven and used in specific applications like antennae on satellites. Like tungsten wire, gold plated molybdenum wire is used in the medical and electronics industries.


Key Features:

  1. Excellent Electrical Conductivity: The gold coating significantly improves the wire's ability to conduct electricity, making it suitable for high-frequency and high-power electronic components.

  2. Corrosion Resistance: Gold's natural resistance to corrosion ensures that the wire can withstand harsh environments, making it ideal for use in humid or chemically aggressive conditions.

  3. Mechanical Strength: Molybdenum provides excellent tensile strength, enabling the wire to maintain stability in high-temperature applications.

  4. Durability and Stability: The combination of gold and molybdenum makes the wire durable and stable, even under demanding conditions.


Technical Parameters


Items

Data

Chemical analysis (wt%)

Mo ≥ 99.9%, Au : 99.99%

Core wire diameter

25μm/27μm in stock, customized

Coating thickness

0.2 ~ 0.8μm

Max. using temperature

450℃

Anti-temperature shock

bear -196 ~ 250℃ fast cyclical impact

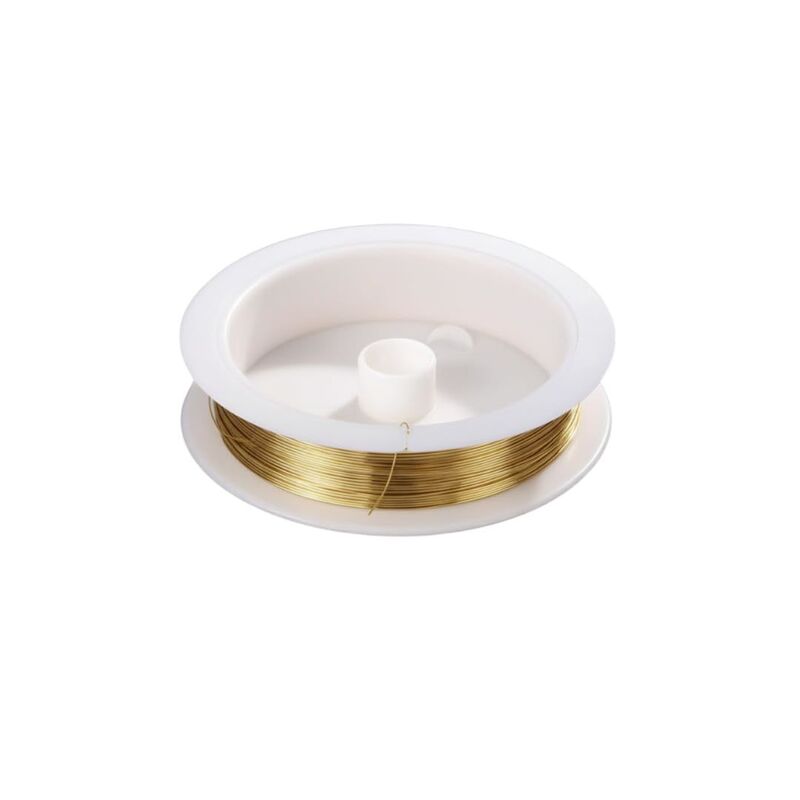

Factory Directly Supply Customized  Gold Plated Molybdenum Wire China 0

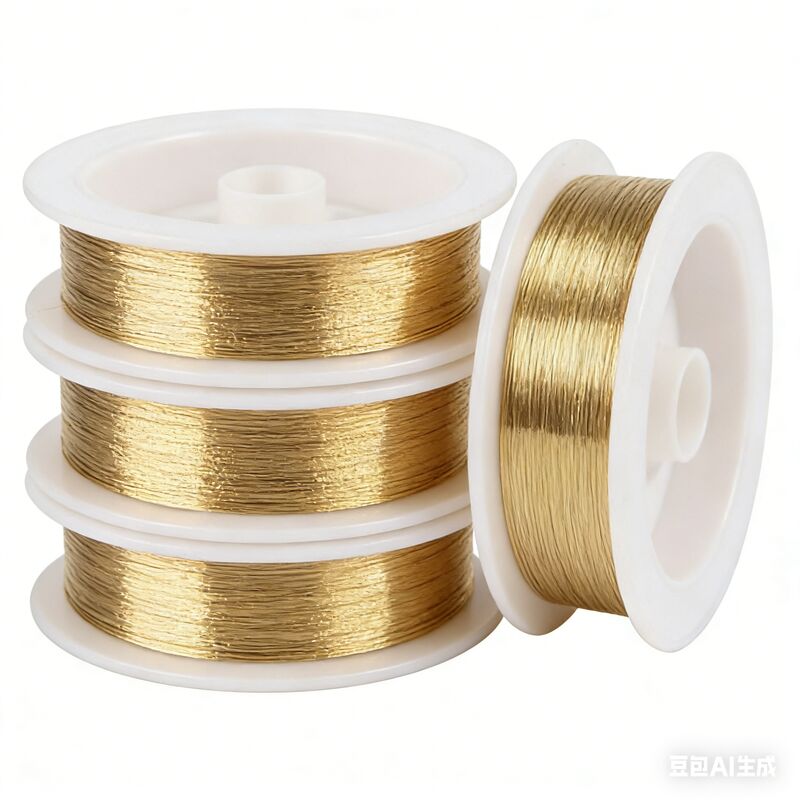

Factory Directly Supply Customized  Gold Plated Molybdenum Wire China 1

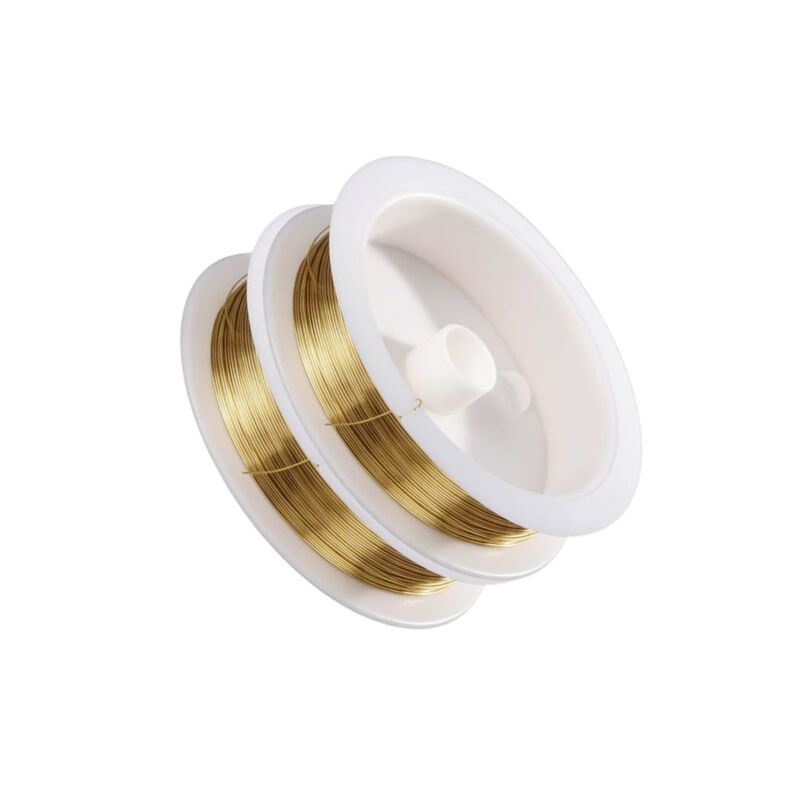

Factory Directly Supply Customized  Gold Plated Molybdenum Wire China 2

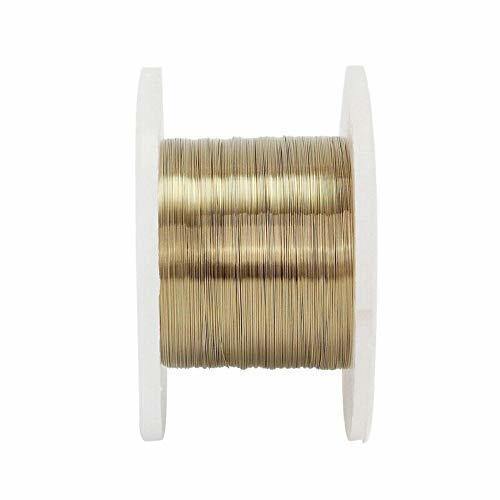

Factory Directly Supply Customized  Gold Plated Molybdenum Wire China 3
